Extra Heavy Duty Cable Tie
CV-1530XL
CV-1530XL product image
CV-1530XL product image
CV-1530XL application image
CV-1530XL application image
Features
Material: UL approved Nylon 66, UL94V-2 flame rating.
Color: Standard color is natural white; black and special colors are available upon request.
Feature: Extra-wide heavy-duty design with very high tensile strength for bundling large cables.
Request Samples
Inquiry
Catalogs
Technical Information

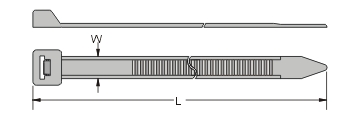

Dimensional Drawing
CV-1530XL specification drawing
Certification
CV-1530XL certification image
CV-1530XL certification image
CV-1530XL certification image
CV-1530XL certification image
Base Data
Length (L) (mm / inch)
1530 / 60 1/4"
Width (W) (mm / inch)
12.7 / 0.5
Min. Loop Tensile Strength (lbs / kgf / N)
250 / 114 / 1112
Max. Bundle Dia.
473
Material
Nylon 66
Flame Rated
UL94V-2
Temperature (°C/°F)
85 / 185
Color
Natural white
Certification
UL, ABS, 無鹵素, RoHS
Packing
100 pcs
Catalogs
Catalog
