CABLE LUGS-HIGH VOLTAGE
CL14-8-2D
Request Samples
Inquiry
Catalogs
Technical Information

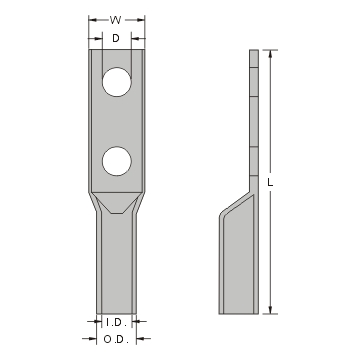

Dimensional Drawing
Certification
Base Data
Wire Size
AWG：6 DIN mm^2：10.6~16.7
Stud Size (D)
8.4
Width (W)
12.0
Length (L)
120.0
Inside Diameter (I.D.)
5.8
Outside Diameter (O.D.)
8.8
Material
Copper
Certification
Halogen-Free,RoHS
Catalogs
Catalog
CABLE LUGS-HIGH VOLTAGE
CL14-8-2D
Description
Features
Dimensional Drawing
Certification
Base Data
Wire Size
AWG：6 DIN mm^2：10.6~16.7
Stud Size (D)
8.4
Width (W)
12.0
Length (L)
120.0
Inside Diameter (I.D.)
5.8
Outside Diameter (O.D.)
8.8
Material
Copper
Certification
Halogen-Free,RoHS
