FLEXIBLE CONDUIT ADAPTOR
BG-14
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66.
●Color: Grey
●Constructed of three parts to fix flexible conduit in control panel, machinery and apparatus.
●Application
1. Mount body to pre-drilled panel hole.
2. Insert conduit through nut.
3. Insert conduit to claw and fix it with nut to complete works.
※Available in LDPE material upon request.
●Color: Grey
●Constructed of three parts to fix flexible conduit in control panel, machinery and apparatus.
●Application
1. Mount body to pre-drilled panel hole.
2. Insert conduit through nut.
3. Insert conduit to claw and fix it with nut to complete works.
※Available in LDPE material upon request.

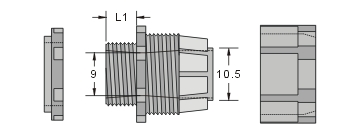

Dimensional Drawing
Certifications
Product Information
Mounting Hole (mm)
18+0.2
Thread O.D. (mm)
18
Thread Length (L1) (mm)
10.0
Suitable Conduit
BG-14P
Conduit I.D. (O.D.1) (mm)
10.5
Material
NYLON 66
Color
Grey
Certification
IP55, Halogen-Free, RoHS
Packing
50pcs
