FLEXIBLE CONDUIT ADAPTOR
BG-10
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66.
●Color: Grey
●Constructed of three parts to fix flexible conduit in control panel, machinery and apparatus.
●Application
1. Mount body to pre-drilled panel hole.
2. Insert conduit through nut.
3. Insert conduit to claw and fix it with nut to complete works.
※Available in LDPE material upon request.

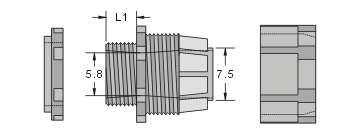

Dimensional Drawing
Certification
Base Data
Mounting Hole
12+0.2
Thread O.D.
12
Thread Length (L1)
9.7
Suitable Conduit
BG-10P
Conduit I.D. (O.D.1)
7.5
Thread
M12X1.25
Material
NYLON 66
Color
Grey
Certification
IP55,Halogen-Free,RoHS
Packing
50pcs
