WATERPROOF FLEXIBLE CONDUIT ADAPTOR
BM-42
Features
● Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal, PVC for Washer.
● Color: Black.
● Function: Fix flexible conduit and provide waterproof protection in control panel, machinery and apparatus.
● Application:
1. Mount body to pre-drilled panel hole.
2. Insert conduit through nut into seal and fix it by twisting nut.
● Available to order the accessories separately. Follow the drawing and add the letter to the suffix part number, L for locknut, W for washer, B for body, S for seal, N for nut. For example, BML-18 if you would like to only order locknut for BM-18.
● Color: Black.
● Function: Fix flexible conduit and provide waterproof protection in control panel, machinery and apparatus.
● Application:
1. Mount body to pre-drilled panel hole.
2. Insert conduit through nut into seal and fix it by twisting nut.
● Available to order the accessories separately. Follow the drawing and add the letter to the suffix part number, L for locknut, W for washer, B for body, S for seal, N for nut. For example, BML-18 if you would like to only order locknut for BM-18.

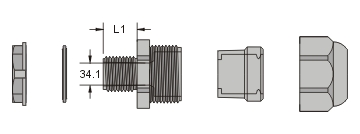

Dimensional Drawing
Certification
Base Data
Mounting Hole
40+0.3
Thread O.D.
40
Thread Length (L1)
15.0
Suitable Conduit
BG-40P, BG-42P, CRS-32P, CRS-35P, PA-36, CF-42P
Thread
M40X1.5
Material
NYLON 66
Color
Black
Certification
RoHS
Packing
10pcs
