MULTI-HOLE NYLON CABLE GLAND (7 HOLES)
EG-21-7B
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal, PVC for Washer.
●Color: Black, available in other colors.
●Multi-Hole Design organizes more than one cable within a gland.

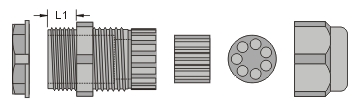

Dimensional Drawing
Certification
Base Data
Thread
PG21
Mounting Hole mm
28.3+0.3
Thread O.D. mm
28.3
Cable Range mm
2.0 ~ 3.0
Thread Length (L1) mm
10.8
Hole(s)
7
Material
NYLON 66
Color
Black
Certification
CE,UKCA,RoHS
Packing
50pcs
