MULTI-HOLE NYLON CABLE GLAND (3 HOLES)
AG-20-3B
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal, PVC for Washer.
●Color: Black, available in other colors.
●Multi-Hole Design organizes more than one cable within a gland.
Request Samples
Inquiry
Catalogs
Technical Information

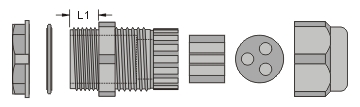

Dimensional Drawing
Certification
Base Data
Thread
M20X1.5
Mounting Hole mm
20+0.2
Thread O.D. mm
20
Cable Range mm
2.6 ~ 3.6
Thread Length (L1) mm
15.0
Hole(s)
3
Material
NYLON 66
Color
Black
Certification
CE,UKCA,RoHS
Packing
50pcs
Technical Information
Thread Standard Reference Table
Catalogs
Catalog
MULTI-HOLE NYLON CABLE GLAND (3 HOLES)
AG-20-3B
Description
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal, PVC for Washer.
●Color: Black, available in other colors.
●Multi-Hole Design organizes more than one cable within a gland.
Dimensional Drawing
Certification
Base Data
Thread
M20X1.5
Mounting Hole mm
20+0.2
Thread O.D. mm
20
Cable Range mm
2.6 ~ 3.6
Thread Length (L1) mm
15.0
Hole(s)
3
Material
NYLON 66
Color
Black
Certification
CE,UKCA,RoHS
Packing
50pcs
