NYLON CABLE GLAND
AG-32
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal, PVC for Washer.
●Color: Black, available in other colors.
●Suit a variety of applications, and diverse industries.
●Function: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal, and then tighten up the nut to hold cables in position.
●Feature: Simply and quickly fixed, high degree of the protection IP68 preventing dust and water.
●Part number AG-D series, smaller size, suit for smaller cabinet.
●Available to order the accessories separately. Follow the drawing and add the letter to the suffix part number, L for locknut, W for washer, B for gland body, S for seal, N for nut. For example, AGL-12 if you would like to only order locknut for M12X1.25

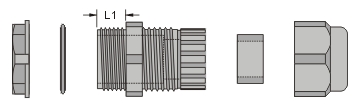

Dimensional Drawing
Certification
Base Data
Thread
M32X1.5
Mounting Hole mm
32+0.3
Thread O.D. mm
32
Cable Range mm
18 ~ 25
Thread Length (L1) mm
14.7
Hole(s)
1
Material
NYLON 66
Color
Black
Certification
UL,CE,UKCA,IP68,RoHS
Packing
25pcs
