MOUNTING CABLE TIE
TCV-205DZ
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66.
●Color: Natural (for black. Please add "BK" to item no.)
●The cable tie can be secured to panel with a single bolt.
●Color: Natural (for black. Please add "BK" to item no.)
●The cable tie can be secured to panel with a single bolt.

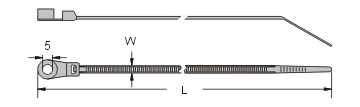

Dimensional Drawing
Certification
Base Data
Length (L) (mm / inch)
219.0 /8 11/16"
Width (W) (mm / inch)
4.8 / 0.19
Min. Loop Tensile Strength (lbs / kgf / N)
75 / 34 / 334
Max. Bundle Dia.
52
Mounting Hole Diameter
5.0
Material
NYLON 66
Flame Rated
UL94V-2
Temperature (°C/°F)
85 / 185
Color
Natural
Certification
ABS,Halogen-Free,RoHS
Packing
100pcs
