MOUNTING CABLE TIE
TCV-300L
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66.
●Color: Natural (for black. Please add "BK" to item no.)
●The cable tie can be secured to panel with a single bolt.
Request Samples
Inquiry
Catalogs
Technical Information

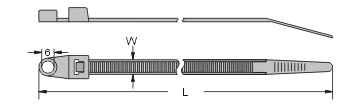

Dimensional Drawing
Certification
Base Data
Length (L) (mm / inch)
300.0 / 12 1/2"
Width (W) (mm / inch)
7.8 / 0.31
Min. Loop Tensile Strength (lbs / kgf / N)
120 / 55 / 534
Max. Bundle Dia. (mm)
80
Mounting Hole Diameter (mm)
6.0
Material
NYLON 66
Flame Rated
UL94V-2
Temperature (°C/°F)
85 / 185
Color
Natural
Certification
UL, CSA, ABS, Halogen-Free, RoHS
Packing
100pcs
Catalogs
Catalog
MOUNTING CABLE TIE
TCV-300L
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66.
●Color: Natural (for black. Please add "BK" to item no.)
●The cable tie can be secured to panel with a single bolt.
Dimensional Drawing
Certification
Base Data
Length (L) (mm / inch)
300.0 / 12 1/2"
Width (W) (mm / inch)
7.8 / 0.31
Min. Loop Tensile Strength (lbs / kgf / N)
120 / 55 / 534
Max. Bundle Dia. (mm)
80
Mounting Hole Diameter (mm)
6.0
Material
NYLON 66
Flame Rated
UL94V-2
Temperature (°C/°F)
85 / 185
Color
Natural
Certification
UL, CSA, ABS, Halogen-Free, RoHS
Packing
100pcs
