MOUNTING CABLE TIE
TCV-100
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66.
●Color: Natural (for black. Please add "BK" to item no.)
●The cable tie can be secured to panel with a single bolt.
Request Samples
Inquiry
Catalogs
Technical Information

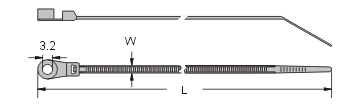

Dimensional Drawing
Certification
Base Data
Length (L) (mm / inch)
110.0 / 4 3/8"
Width (W) (mm / inch)
2.5 / 0.1
Min. Loop Tensile Strength (lbs / kgf / N)
18 / 8 / 80
Max. Bundle Dia. (mm)
25
Mounting Hole Diameter (mm)
3.2
Material
NYLON 66
Flame Rated
UL94V-2
Temperature (°C/°F)
85 / 185
Color
Natural
Certification
UL, CSA, DNV, ABS, Halogen-Free, RoHS
Packing
100pcs
Catalogs
Catalog
MOUNTING CABLE TIE
TCV-100
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66.
●Color: Natural (for black. Please add "BK" to item no.)
●The cable tie can be secured to panel with a single bolt.
Dimensional Drawing
Certification
Base Data
Length (L) (mm / inch)
110.0 / 4 3/8"
Width (W) (mm / inch)
2.5 / 0.1
Min. Loop Tensile Strength (lbs / kgf / N)
18 / 8 / 80
Max. Bundle Dia. (mm)
25
Mounting Hole Diameter (mm)
3.2
Material
NYLON 66
Flame Rated
UL94V-2
Temperature (°C/°F)
85 / 185
Color
Natural
Certification
UL, CSA, DNV, ABS, Halogen-Free, RoHS
Packing
100pcs
