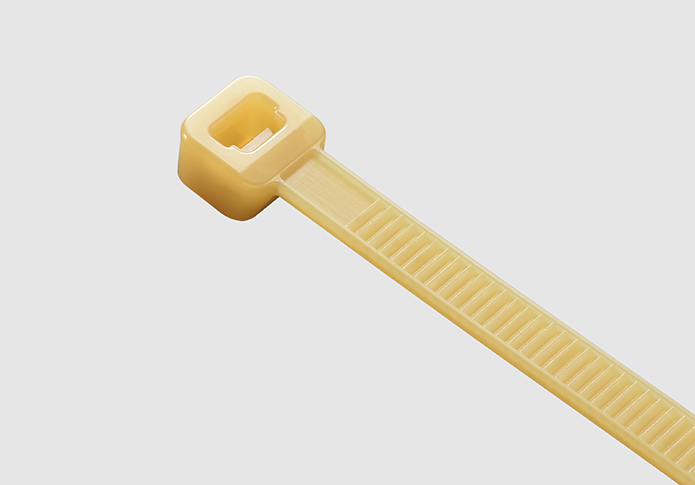

EXTRA HIGH TEMPERATURE CABLE TIE
CV-380N46
Features
●Material: UL94V-2 flame rated, UL approved Nylon 46.
● Color: Light Brown.
● Application: One piece self-lock cable tie save the time and make effective for installation.
● Feature : Designed for extra high-temperature up to 150℃.
Request Samples
Inquiry
Catalogs
Technical Information

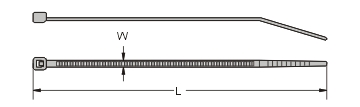

Dimensional Drawing
Certification
Base Data
Length (L) (mm / inch)
380 / 15"
Width (W) (mm / inch)
7.6 / 0.3
Min. Loop Tensile Strength (lbs / kgf / N)
120 / 55 / 534
Max. Bundle Dia.
105
Material
NYLON 46
Flame Rated
UL94V-2
Color
Light Brown
Certification
Halogen-Free,RoHS
Packing
100pcs
Technical Information
Technical Data-To pick the right cable tie & Nylon 66 Cable tie
Technical Data-KSS Cable tie features
Technical Data-KSS Safety Certification
Technical Data-KSS Storage and Application
Technical Data-KSS Cable Tie Standard Bag
Catalogs
Catalog
