EXTRA HEAVY DUTY CABLE TIE
CV-255XXL
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66.
●Extra heavy duty ties for application where higher tensile strength is needed.
Request Samples
Inquiry
Catalogs
Technical Information

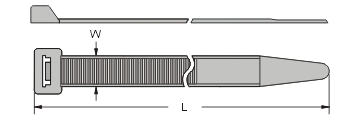

Dimensional Drawing
Certification
Base Data
Length (L) (mm / inch)
254 / 10"
Width (W) (mm / inch)
17.8 / 0.7
Min. Loop Tensile Strength (lbs / kgf / N)
120 / 55 / 534
Max. Bundle Dia.
42
Material
NYLON 66
Flame Rated
UL94V-2
Temperature (°C/°F)
85 / 185
Color
Natural
Certification
UL,DNV.GL,CE,UKCA,VDE,LR,ABS,Halogen-Free,RoHS
Packing
100pcs
Technical Information
Technical Data-To pick the right cable tie & Nylon 66 Cable tie
Technical Data-Loop Tensile Strength Test according to UL62275
Technical Data-KSS Cable tie features
Technical Data-KSS Safety Certification
Technical Data-KSS Storage and Application
Technical Data-KSS Cable Tie Standard Bag
Catalogs
Catalog
EXTRA HEAVY DUTY CABLE TIE
CV-255XXL
Description
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66.
●Extra heavy duty ties for application where higher tensile strength is needed.
Dimensional Drawing
Certification
Base Data
Length (L) (mm / inch)
254 / 10"
Width (W) (mm / inch)
17.8 / 0.7
Min. Loop Tensile Strength (lbs / kgf / N)
120 / 55 / 534
Max. Bundle Dia.
42
Material
NYLON 66
Flame Rated
UL94V-2
Temperature (°C/°F)
85 / 185
Color
Natural
Certification
UL,DNV.GL,CE,UKCA,VDE,LR,ABS,Halogen-Free,RoHS
Packing
100pcs
