NYLON CABLE GLAND (WITH STRAIN RELIEF)
NPT-38SR
Features
●Strain relief design protect cable from breakage / right angle bending.
●Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal.
●Color: Black, available in other colors.
Request Samples
Inquiry
Catalogs
Technical Information

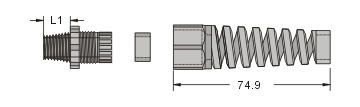

Dimensional Drawing
Certification
Base Data
Thread
3/8" - 18 NPT
Mounting Hole mm
17.2+0.2
Thread O.D. mm
17.2
Cable Range mm
5 ~ 10
Thread Length (L1) mm
14.6
Hole(s)
1
Material
NYLON 66
Color
Black
Certification
RoHS
Packing
50pcs
Technical Information
Thread Standard Reference Table
Catalogs
Catalog
NYLON CABLE GLAND (WITH STRAIN RELIEF)
NPT-38SR
Description
Features
●Strain relief design protect cable from breakage / right angle bending.
●Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal.
●Color: Black, available in other colors.
Dimensional Drawing
Certification
Base Data
Thread
3/8" - 18 NPT
Mounting Hole mm
17.2+0.2
Thread O.D. mm
17.2
Cable Range mm
5 ~ 10
Thread Length (L1) mm
14.6
Hole(s)
1
Material
NYLON 66
Color
Black
Certification
RoHS
Packing
50pcs
