MULTI-HOLE NYLON CABLE GLAND (4 HOLES)
EG-13L-4A
Features
●Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal, PVC for Washer.
●Color: Black, available in other colors.
●Multi-Hole Design organizes more than one cable within a gland.

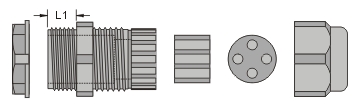

Dimensional Drawing
Certification
Base Data
Thread
PG13.5
Mounting Hole mm
20.4+0.2
Thread O.D. mm
20.4
Cable Range mm
3.2 ~ 4.2
Thread Length (L1) mm
15.8
Hole(s)
4
Material
NYLON 66
Color
Black
Certification
CE,UKCA,RoHS
Packing
50pcs
